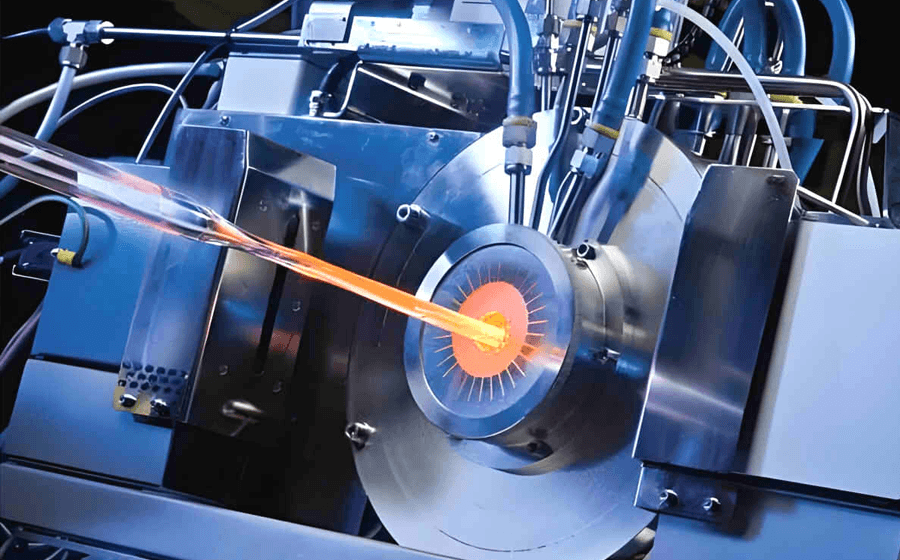

Sourcing Custom OVD & VAD Burners: The Material Science and Reverse Engineering Guide for Fiber Preform Engineers

In the high-stakes environment of optical fiber preform manufacturing, standard off-the-shelf components don’t always align with proprietary facility recipes. As global manufacturers push the boundaries of deposition speed and preform scale, process engineers frequently modify flame geometry, gas velocity ratios, and torch dimensions.

Whether you are looking to duplicate a legacy OEM component that is no longer supported, or manufacturing a highly customized, proprietary multi-flow burner design for an Outside Vapor Deposition (OVD) or Vapor Axial Deposition (VAD) setup, success hinges on two non-negotiable variables: exacting material science and flawless precision machining.

When dealing with micron-level tolerances and volatile chemical reactions, transitioning from a conceptual blueprint or a worn physical sample to a high-yielding production torch requires a deep understanding of metallurgy, gas dynamics, and advanced CNC workflows.

1. The Metallurgy of Vapor Deposition: Selecting the Right Alloys

An optical fiber burner is subjected to localized thermal stress while continuously channeling corrosive chemical vapors like silicon tetrachloride (SiCl₄) and germanium tetrachloride (GₑCl₄). Choosing the wrong base metal leads to premature thermal deformation, gas channel erosion, and localized contamination of the soot preform.

When engineering a custom torch, our metallurgy team typically evaluates three primary materials based on your specific cleanroom application:

Premium 316L Stainless Steel (Vacuum-Melted)

• Best For: Main burner inlet bodies, multi-layer gas distribution blocks, and OVD outer cladding torch nozzles.

• Why it matters: 316L offers exceptional resistance to the hydrochloric acid (HCl) byproducts generated during hydrogen-oxygen hydrolysis. Utilizing ultra-low carbon, vacuum-melted 316L variants minimizes carbide precipitation during high-temperature cycles, ensuring the internal gas paths remain entirely free from pitting.

Oxygen-Free High-Conductivity (OFHC) Copper & Premium Brass Alloys

• Best For: High-intensity VAD core deposition burner tips and MCVD external heating nozzles.

• Why it matters: In certain deposition configurations, rapid thermal dissipation is critical to prevent the nozzle face from melting or warping. OFHC copper features a massive thermal conductivity rating, pulling heat away from the flame zone instantly. When paired with localized specialized coatings, these alloys prevent thermal oxidation and maintain pristine orifice geometry over hundreds of continuous running hours.

Synthetic High-Purity Quartz

• Best For: Ultra-pure core deposition zones where zero metallic contamination is tolerated.

• Why it matters: For specific proprietary processes, quartz burner heads are utilized. Machining or integrating these fragile structures into robust metal manifold bases requires precise specialized clamping matrices to eliminate structural stress points.

2. Navigating the Reverse Engineering Process: From Physical Part to 3D CAD

Many advanced optical fiber facilities operate reliable legacy deposition lines where original OEM drawings are lost, or the original equipment manufacturer charges exorbitant lead times and premiums for replacements. In these scenarios, reverse engineering is the most viable path to securing a resilient supply chain.

However, a burner cannot be reverse-engineered using standard caliper measurements. The internal layout—consisting of intersecting gas galleries, step-down chambers, and concentric distribution rings—must be accurately mapped.

[Worn Physical Sample]
       │
       ▼
[High-Resolution 3D Laser Scanning / CMM Optical Profilometry]
       │
       ▼
[Digital Reconstruction & Flow-Path Verification (CAD/STEP)]
       │
       ▼
[Single-Setup Turn-Mill CNC Machining] ──> [Field-Ready Replacement Component]

Our engineering department utilizes coordinate measuring machines (CMM) and high-resolution optical profilometers to non-destructively map the internal architecture of your sample. We don’t just copy the worn dimensions; our team recalculates the original design intents, corrects deviations caused by operational wear-and-tear, and delivers a fully validated, production-ready 3D STEP or CAD model for your engineering archives before machining begins.

3. The Machining Challenge: Eliminating Stack-Up Error in Multi-Channel Assemblies

A typical OVD or VAD burner assembly is built from multiple stacked plates or concentric tubes nestled inside a master housing. If these components are manufactured across separate, uncalibrated machines, a phenomenon known as tolerance stack-up error occurs.

If three stacked internal gas distribution plates each deviate by a mere $0.005\text{ mm}$, the total assembly misalignment can reach $0.015\text{ mm}$. This subtle shift forces the gas channels out of alignment, causing internal gas leakage (cross-contamination of raw chemicals and shield gases) and an erratic, asymmetric deposition flame.

To overcome this, advanced custom fabrication relies heavily on high-precision Turn-Mill CNC Machining Centers. By turning the outer diameters and milling the internal concentric gas grooves within a single automated machine setup, clamping errors are completely removed. This guarantees absolute axial alignment and airtight face-to-face metal sealing without relying on excessive gaskets that degrade under cleanroom chemical exposure.

A Trusted Manufacturing Infrastructure for Global Non-Standard Customization

Transitioning away from expensive OEM monopolies requires a manufacturing partner with a demonstrable, long-term pedigree in ultra-precision machining.

At SKY CNC., we have spent more than 22 years refining our high-tolerance custom CNC machining capabilities. Our flagship manufacturing infrastructure, detailed on our primary corporate site at sky-cnc.com, supports everything from aerospace assemblies to complex medical valves. Through our specialized division at ovdparts.com, we channel this extensive multi-axis turn-mill expertise directly into the optical fiber consumables sector.

Our engineering and manufacturing methodologies are trusted daily by the world’s most rigorous global optical fiber market leaders, including YOFC, Hengtong Optic-Electric, ZTT, Futong Group, Yongding Stock, Tongding Interconnection, and SDG Information.

Whether you require a direct, high-volume replacement batch for our 4 standard stock burner models, or a highly confidential, completely non-standard reverse-engineered torch prototype, we apply the same single-digit micron manufacturing discipline to ensure your soot deposition yield remains completely uncompromised.

Secure Your Custom Fabrication Partner Under Full NDA

We understand that custom burner configurations often contain your facility’s core intellectual property and proprietary gas-flow formulations. IP protection is our standard operational policy. We are fully prepared to execute a comprehensive, legally binding Non-Disclosure Agreement (NDA) before you transmit any technical drawings, sample components, or operational parameters.

Ready to optimize your deposition hardware or start a reverse-engineering project? Contact our technical engineering cell or securely upload your STEP/CAD files today at ovdparts.com.
