Title: Preventing Cleanroom Downtime: The Engineering Guide to OVD/VAD Burner Maintenance and Lifespan Extension

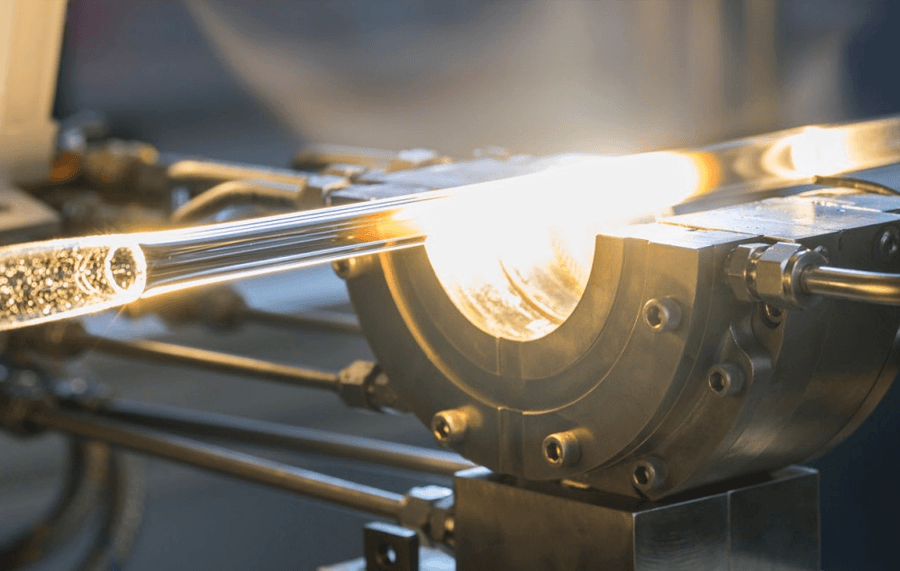

On the optical fiber preform deposition floor, precision metal burner parts are treated as consumables, but they shouldn’t be treated as disposable. Operating continuously under extreme thermal cycling while being blasted by highly corrosive hydrochloric acid (HCl) gas, these multi-channel torches operate in one of the most brutal environments in modern manufacturing.

When a burner fails mid-cycle, the loss isn’t just the cost of the machined metal—it’s the dozens of hours of aborted deposition time, wasted silicon tetrachloride (SiCl₄), and unscheduled cleanroom downtime.

However, premature burner degradation is rarely an inevitable cost of doing business. It is usually the result of microscopic accumulation of silica soot, incorrect cleaning methodologies, or subtle gas-channel pitting.

Let’s look at the primary root causes of OVD/VAD burner failure, how to troubleshoot them on the shop floor, and how to extend the operational lifespan of your deposition assemblies.

1. Troubleshooting Three Common Burner Failure Modes

Before a burner causes a catastrophic defect in a soot boule, it leaves distinct mechanical clues. Recognizing these symptoms early can save an entire preform run.

Symptom A: Flame Drifting, Splitting, or “Floating”

• The Cause: If your flame geometry shifts from a perfectly laminar, symmetrical cone to a skewed or split profile, the culprits are usually internal. Over time, the intense heat can cause micro-warping in the concentric gas rings, or chemical pitting inside the internal gas pathways can alter the velocity vectors of the shielding gases (H₂/O₂).

• The Check: Inspect the face of the nozzle assembly under an optical comparator. Look for out-of-round deformation of the central chemical gas tube or uneven gaps between the concentric rings. A deviation of just 0.02 mm is enough to ruin flame symmetry.

Symptom B: Rapid Silica “Crusting” on the Nozzle Face

• The Cause: While some soot accumulation is normal over extended runs, rapid crusting over the micro-holes suggests a failure in the barrier gas layer. This is frequently triggered by improper manual cleaning in past maintenance cycles. If a technician uses a hard wire brush or metal pick to clear a blockage, they create microscopic scratches on the polished metal face. These micro-scratches act as physical anchors for SiO₂ particles, accelerating crust formation.

• The Check: Examine the nozzle face under magnification. If you see linear scratches around the 0.5 mm gas ports, the surface tension has been compromised.

Symptom C: Unexpected Mass Flow Controller (MFC) Pressure Spikes

• The Cause: When your MFC reports a sudden pressure increase to maintain a stable gas flow rate, it indicates a restriction inside the burner. This can be caused by unreacted chemical vapors back-diffusing into the inner channels during shutdown sequences, where they react with ambient moisture to form hard silica deposits inside the internal gas distribution plates.

2. Best Practices for Cleaning High-Tolerance Deposition Torches

Cleaning an OVD or VAD burner requires a balance between complete chemical removal of silica and absolute preservation of the machined tolerances. Aggressive cleaning is the number one killer of aftermarket and OEM burners alike.

• Avoid Mechanical Scraping: Never use steel wires, welding tip cleaners, or hard metal implements to clear clogged micro-holes. Once the interior wall of a micro-hole is scratched or gouged, the laminar flow is permanently replaced by turbulent flow, leading to localized cold spots in the flame. Use specialized nylon or soft brass pins only if strictly necessary.

• Optimized Ultrasonic Baths: When utilizing ultrasonic cleaning to break loose internal silica blockages, ensure the burner components are completely disassembled. If a multi-layer torch is placed in an ultrasonic tank fully assembled, the microscopic vibrations can cause the faceplates and sealing surfaces to rub against each other, leading to fretting wear and subsequent gas leaks.

• Controlled Chemical Etching: If your SOP requires chemical dipping to dissolve stubborn glass deposits, closely monitor immersion times. Extended exposure can leach alloying elements from 316L stainless steel or copper components, altering the precise diameters of your gas ports.

3. Engineering for Longevity: The Modular Advantage

Traditionally, when an OEM burner suffered terminal nozzle wear, procurement teams were forced to buy an entirely new, expensive assembly. This all-or-nothing approach heavily inflates a cleanroom’s operational budget.

Modern precision manufacturing has shifted toward a modular engineering framework. Because the outer nozzle cone and the internal gas distribution plates degrade at significantly faster rates than the massive main inlet valve body, the supply chain should reflect that reality.

[Main Inlet Body] ──> [Replaceable Distribution Plate] ──> [Replaceable Nozzle Cone]
(Low Wear Rate) (Medium Wear Rate) (High Wear Rate)

By transitioning to modular burner configurations, engineers can replace only the specific component that has suffered thermal or chemical fatigue. This targeted maintenance approach can reduce a facility’s annual consumables spend by up to 30%to 40%, without taking any risks with flame performance or preform quality.

Field-Validated Reliability from China’s Precision Pioneers

Minimizing cleanroom downtime requires a manufacturing partner who understands that a burner component is a highly calibrated scientific instrument, not just a piece of turned metal.

At SKY CNC., we bring 22 years of high-tolerance turn-mill CNC expertise to the global optical fiber industry. Our specialized platform at ovdparts.com delivers factory-direct, drop-in replacement burner parts engineered to withstand the harshest deposition environments.

Our parts are not untested alternatives. They are field-validated and running daily on the high-intensity production lines of global fiber optic market leaders, including YOFC, Hengtong Optic-Electric, ZTT, Futong Group, Yongding Stock, Tongding Interconnection, and SDG Information.

We machine every component—from single gas plates to complete OVD/VAD multi-channel assemblies—to tolerances within single-digit microns, applying proprietary deburring and anti-corrosion surface treatments that actively resist chemical pitting and minimize crusting.

Streamline Your Cleanroom Consumables Supply

Don’t let OEM markups and unpredictable lead times threaten your production schedule. Whether you need to source immediate safety stock for our 4 standard models or require full reverse-engineering support for a proprietary VAD/MCVD setup under strict NDA protection, we are ready to deploy our manufacturing capabilities for your facility.

Explore our technical specifications or upload your custom CAD files for an engineering review today at ovdparts.com.
