OVD Deposition Parts | Fiber Optic Equipment Components

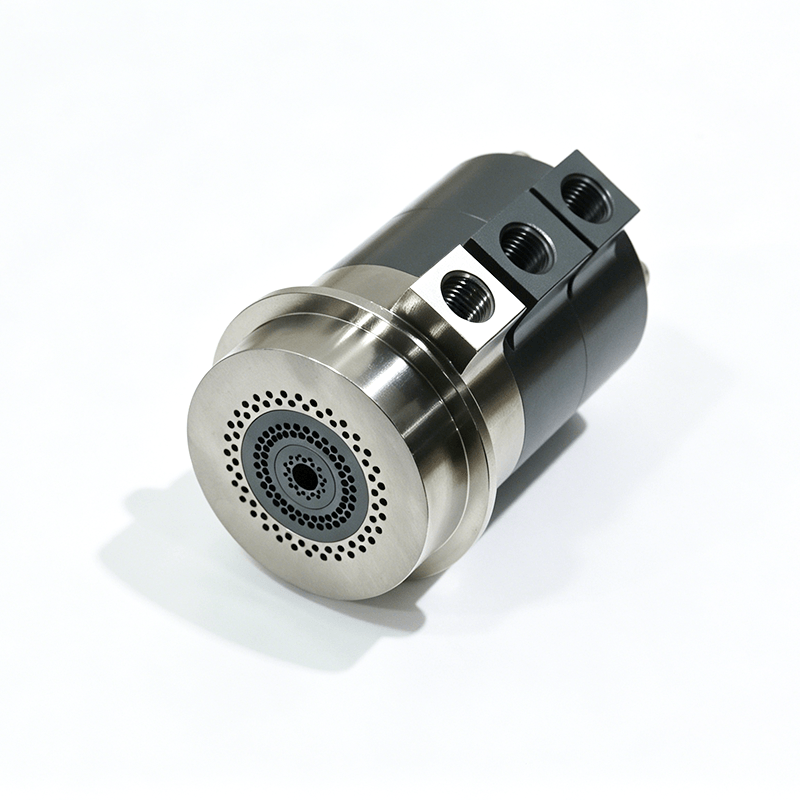

Achieve exceptional thermal control and chemical stability in specialized soot deposition setups with the OVD-NOZ-03 hybrid-metal burner assembly.

While this specific configuration is designed for highly specialized and niche fiber optic equipment layouts, we maintain an active, limited backup stock of this model. This ensures that advanced research facilities and high-precision preform manufacturing lines never face unexpected operational delays. By utilizing an innovative titanium-aluminum hybrid architecture, the OVD-NOZ-03 delivers a perfect balance of durability, lightweight design, and thermal efficiency.

Looking for other configurations or standard replacement parts? Explore our full range of factory-direct OVD burner parts to find the ideal fit for your cleanroom.

Technical Features & Engineering Advantages

🔬 Dual-Alloy Hybrid Engineering

Unlike standard single-metal burners, the OVD-NOZ-03 leverages two distinct metals to handle different physical stresses on your fiber optic equipment components:

• Flame-Facing Nozzle Head (Titanium Alloy): The high-heat front face is crafted from premium titanium alloy, providing absolute resistance to flame deformation and chemical corrosion caused by gaseous halides like silicon tetrachloride (SiCl₄) and germanium tetrachloride (GeCl₄).

• Base Manifold (Aluminum Alloy): The body is CNC-machined from high-grade anodized aluminum alloy. Its high thermal conductivity allows the burner to dissipate residual heat rapidly, stabilizing the process gases before they reach the flame.

Learn how burner nozzle precision affects deposition yield, and explore the [internal aerodynamics](/managing-internal-aerodynamics-pressure-balancing-and-gas-flow-dynamics-in-multi-channel-ovd-vad-torches/) of multi-channel torch design.

💨 Turbulence-Free Laminar Flow

Every internal gas pathway is machined via multi-axis CNC turn-mill centers in a single setup to eliminate alignment errors. This ultra-precise structural accuracy prevents internal gas turbulence and back-diffusion, ensuring a perfectly concentric, stable laminar flame profile for high-density soot deposition.

⚖️ Lightweight Design with Secure Mounting

The integration of an aluminum alloy base drastically reduces the overall weight of the burner assembly without sacrificing structural integrity.

• Reduced Equipment Wear: The lightweight design minimizes the mechanical load on your deposition lathe’s automated motion arms, reducing long-term equipment wear and tear.

Product Specifications & Material Index

Every unit undergoes a rigid quality control protocol in our testing facilities to ensure seamless, drop-in compatibility with industrial setups.

Parameter	Specification / Capability
Model Number	OVD-NOZ-03
Nozzle Tip Material	Premium Titanium Alloy (Extreme High-Temp, Corrosion-Resistant)
Manifold Body Material	Anodized Aluminum Alloy (High Thermal Dissipation, Lightweight)
Manufacturing Process	Full CNC Precision Machining
Dimensional Tolerance	Down to ±0.005mm (single-digit microns)

Inventory Notice & Ordering Information

• • Limited Batch Availability: Due to the specialized nature of the OVD-NOZ-03, we fabricate this model in limited, high-purity production runs. We currently have a small quantity in stock and ready for immediate shipment via international express air freight (DHL/FedEx/UPS).

  • On-Demand Customization & NDA Protection: If your optical fiber manufacturing line requires custom port sizes, alternative mounting configurations, or specific channel counts, we can custom-machine components to your exact drawings. All custom OEM/ODM development is handled under strict Non-Disclosure Agreements (NDA) to protect your IP.
